Datasheet   TRB140 ist ein extrem kleines, leichtes und energieeffizientes Industrie-Gateway, das mit unternehmenskritischen LTE Cat 4-Fähigkeiten, einer Gigabit-Ethernet-Schnittstelle, digitalen Ein- und Ausgängen und einem Micro-USB-Anschluss ausgerüstet ist. Aufgrund seines kompakten Designs ist dieses Produkt perfekt für Projekte und Anwendungen, bei denen ein einziges Gerät eine zuverlässige Internet Konnektivität benötigt.     MOBILE  Mobile module4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbpsStatus4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbpsSMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPPUSSDSupports sending and reading Unstructured Supplementary Service Data messagesBlack/White listOperator black/white list (by country or separate operators)Multiple PDNPossibility to use different PDNs for multiple network access and servicesBand managementBand lock, Used band status displayAPNAuto APNBridgeDirect connection (bridge) between mobile ISP and device on LANPassthrough Gateway assigns its mobile WAN IP address to another device on LANNETWORK  RoutingStatic routingNetwork protocolsTCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)VoIP passthrough supportH.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packetsConnection monitoringPing Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspectionFirewallPort forward, traffic rules, custom rulesFirewall status pageView all your Firewall statistics, rules, and rule countersPorts managementView device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so onNetwork topologyVisual representation of your network, showing which devices are connected to which other devicesHotspotCaptive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes and option to upload and download customised hotspot themesDHCPStatic and dynamic IP allocation, DHCP RelayQoS / Smart Queue Management (SQM)Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11eDDNSSupported >25 service providers, others can be configured manuallyNetwork backupMobile, VRRP, Wired options, each of which can be used as an automatic FailoverSSHFSPossibility to mount remote file system via SSH protocol ETHERNET  Ethernet 1 x ETH ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossoverMODBUS   Supported modesServer, ClientSupported connection typesTCPCustom registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionalitySupported data formats8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII MQTT GATEWAY  MQTT Gateway Allows sending commands and receiving data from MODBUS Server through MQTT brokerDNP3  Supported modes TCP Master, DNP3 OutstationSYSTEM CHARACTERISTICS CPUARM Cortex-A7 1.2 GHzRAM128 MB, DDR2FLASH storage 512 MB, SPI FlashINPUT / OUTPUT  Input1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic highOutput1 x Digital Output, Open collector output, max output 30 V, 300 mAEventsEmail, RMS, SMSI/O juggler Allows to set certain I/O conditions to initiate eventPOWER  Connector4-pin industrial DC power socketInput voltage range9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us maxPoE (passive)Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDCPower consumption < 5 WPHYSICAL INTERFACES (PORTS, LEDS, BUTTONS; SIM) Ethernet1 x RJ45 port, 10/100/1000 MbpsI/O’s1 x Digital Input, 1 x Digital Output on 4-pin power connectorStatus LEDs3 x connection type status LEDs, 5 x connection strength LEDs, 2 x LAN status LEDs, 1x Power LEDSIM1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 VPower1 x 4-pin power connectorAntennas1 x SMA for LTEUSB 1 x Virtual network interface via micro USBResetReboot/User default reset/Factory reset button PHYSICAL SPECIFICATION Casing materialAluminium housingDimensions (W x H x D)74.5 x 25 x 64.4 mmWeight134 gMounting options Bottom and sideways DIN rail, Flat surfacePACKAGE CONTAINS  TRB140 9 W EU PSU PR3PUEU31x Mobile antenna (magnetic mount, SMA male, 3 m cable)Micro-USB cable (0.8 m)1x hex keyLAN cableQSG (Quick Start Guide)Packaging box

  industrieller Mobilfunk-Router Ausgerüstet mit 4G LTE, Wi-Fi und zwei Ethernet-Anschlüssen, bietet dieser Router eine ununterbrochene Verbindung mit einem Backup durch automatisches Failover. Industrielles Design, kompakte Größe, mehrere Anschlussschnittstellen und Kompatibilität mit RMS machen dieses Gerät zu einer hervorragenden Wahl für zahlreiche IoT- und M2M-Lösungen.     Datasheet DE       MOBILE     Mobile module 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – UP to 236.8 kbps Status Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID SMS   SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP USSD Supports sending and reading Unstructured Supplementary Service Data messages Black/White list Operator black/white list Multiple PDN Possibility to use different PDNs for multiple network access and services Band management Band lock, Used band status display APN Auto APN Bridge Direct connection (bridge) between mobile ISP and device on LAN Passthrough   Router assigns its mobile WAN IP address to another device on LAN WIRELESS     Wireless mode IEEE 802.11b/g/n/, Access Point (AP), Station (STA) WiFi security WPA2-Enterprise – PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation SSID/ESSID SSID stealth mode and access control based on MAC address WiFi users Up to 50 simultaneous connections Wireless Hotspot   Captive portal (Hotspot), internal/external Radius server, built in customizable landing page ETHERNET     WAN 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX LAN   1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX MODBUS TCP SLAVE     ID range Respond to one ID in range [1;255] or any Allow Remote Access Allow access through WAN Custom registers   MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality MODBUS TCP MASTER     Supported functions 01, 02, 03, 04, 05, 06, 15, 16 Supported data formats   8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC) MODBUS DATA TO SERVER   Protocol   HTTP(S), MQTT, Azure MQTT MQTT GATEWAY     MQTT Gateway   Allows sending commands and receiving data from MODBUS Master through MQTT broker DNP3     Supported modes   TCP Master, DNP3 Outstation SYSTEM CHARACTERISTICS   CPU Mediatek MIPS 24Kc 580 MHz RAM 128 MB, DDR2 FLASH storage   16 MB, SPI Flash INPUT / OUTPUT     Input 1 x Digital Input, 0 – 6 V detected as logic low, 8 – 30 V detected as logic high Output 1 x Digital Output, Open collector output, max output 30 V, 300 mA Events Email, RMS, SMS I/O juggler   Allows to set certain I/O conditions to initiate event POWER     Connector 4-pin industrial DC power socket Input voltage range 9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max PoE (passive) Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 – 50 VDC Power consumption   < 6.5 W Max PHYSICAL INTERFACES (PORTS, LEDS, BUTTONS; SIM)   Ethernet 2 x RJ45 ports, 10/100 Mbps I/O’s 1 x Digital Input, 1 x Digital Output on 4-pin power connector Status LEDs 3 x Connection type status LEDs, 5 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED SIM 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V, external SIM holder Power 1 x 4-pin power connector Antennas 2 x SMA for LTE, 1 x RP-SMA for WiFi antenna connectors Reset   Reboot/User default reset/Factory reset button PHYSICAL SPECIFICATION   Casing material Aluminium housing, plastic panels Dimensions (W x H x D) 83 x 25 x 74 mm Weight 125 g Mounting options   Bottom and sideways DIN rail mounting slots PACKAGE CONTAINS     Router RUT241 9 W EU PSU 2x LTE antennas (swivel, SMA male) 1 x WiFi antenna (swivel, RP-SMA mal) Ethernet cable (1.5 m) SIM Adapter kit QSG (Quick Start Guide) RMS Flyer Packaging box

Das Teltonika Networks Remote Management System ist eine benutzerfreundliche All-in-One-IoT-Plattform, die eine einfache Möglichkeit bietet, den Überblick über Ihre vernetzte Lösung zu behalten. Es handelt sich um eine leistungsstarke Software, die den Fernzugriff und die Verwaltung aller angeschlossenen Teltonika-Netzwerke und Geräte von Drittanbietern ermöglicht.   Sie benötigen einen Credit pro Gerät und Monat.

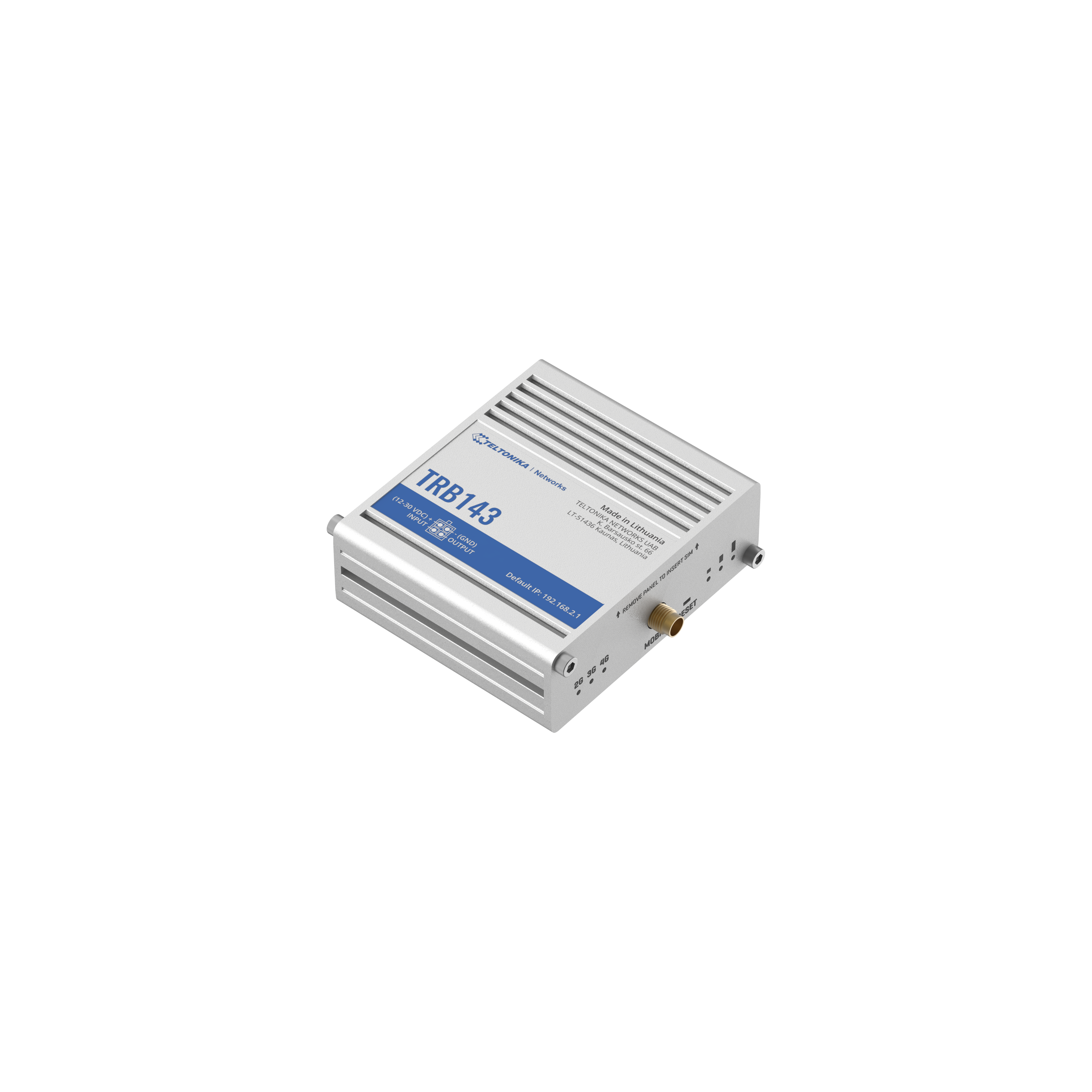

Kleines industrielles LTE Cat 1-Gateway. Ausgestattet mit verschiedenen Inputs/Outputs und einem Micro-USB Port, einschließlich Digital, Relay, Analog und Isolated. Perfekt für Anwendungsfälle, in denen Geräte über I/O aus der Ferne verwaltet werden müssen.   Datasheet     MOBILE     Mobile module 4G (LTE) – Cat 1 up to 10 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps Status Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID SMS   SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP USSD Supports sending and reading Unstructured Supplementary Service Data messages Black/White list Operator black/white list Multiple PDN Possibility to use different PDNs for multiple network access and services Band management Band lock, Used band status display APN Auto APN Bridge Direct connection (bridge) between mobile ISP and device on LAN Passthrough   Router assigns its mobile WAN IP address to another device on LAN NETWORK     Routing Static routing Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection Firewall Port forward, traffic rules, custom rules DHCP Static and dynamic IP allocation, DHCP Relay Network backup Mobile, VRRP, Wired options, each of which can be used as an automatic Failover SSHFS Possibility to mount remote file system via SSH protocol   MODBUS TCP SLAVE     ID range Respond to one ID in range [1;255] or any Allow Remote Access Allow access through WAN Custom registers   MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality MODBUS TCP MASTER     Supported functions 01, 02, 03, 04, 05, 06, 15, 16 Supported data formats   8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC) DATA TO SERVER   Protocol   HTTP(S), MQTT, Azure MQTT MQTT GATEWAY     MQTT Gateway   Allows sending commands and receiving data from MODBUS Master through MQTT broker DNP3     Supported modes   TCP Master, DNP3 Outstation SYSTEM CHARACTERISTICS   CPU ARM Cortex-A7 1.2 GHz RAM 128 MB, DDR2 FLASH storage   512 MB, SPI Flash INPUT / OUTPUT     Input 2 x Digital inputs (configurable passive or active), 1 x Isolated input, 1 x Analog input ( with 4-20 mA capability). 1 x Configurable Inputs. Digital input 0 - 5 V detected as logic low, 8 - 30 V detected as logic high Output 2 x Relay outputs (latching and non latching). 1 x Configurable Output, Open collector output, max output 30 V, 300 mA Events Email, RMS, SMS I/O juggler   Allows to set certain I/O conditions to initiate event POWER     Connector 4-pin industrial DC power socket Input voltage range 9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max Power consumption   < 5 W PHYSICAL INTERFACES   I/O’s 3 x Digital Inputs, 1 x Analog input, 2 x Relays on 16 pin connector, 2 x I/O pins on 4 pin power connector Status LEDs 3 x connection type status LEDs, 5 x connection strength LEDs, 1 x Power LED SIM 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V Power 1 x 4-pin power connector 1-Wire 1 x 1-Wire interface on 16 pin connector Antennas 1 x SMA for LTE USB 1 x Virtual network interface via micro USB Reset   Reboot/User default reset/Factory reset button PHYSICAL SPECIFICATION   Casing material Aluminium housing Dimensions (W x H x D) 74.5 x 25 x 64.4 mm Weight 136 g Mounting options   Bottom and sideways DIN rail, Flat surface OPERATING ENVIRONMENT   Operating temperature -40 °C to 75 °C Operating humidity 10% to 90% non-condensing Ingress Protection Rating IP30   PACKAGE CONTAINS     TRB141 Gate 9 W EU PSU 1x LTE antenna (magnetic mount, SMA male, 3 m cable) Micro-USB cable (0.8 m) 1x hex key I/O connector QSG (Quick Start Guide) Packaging box

Datasheet     TSW100 ist der erste industrielle unverwaltete Ethernet Switch von Teltonika Networks. Ausgerüstet mit einer Stromquelle (PSE), ermöglicht dieses Gerät die Zentralisierung der Stromversorgung, bietet bis zu 30 Watt pro Anschluss und reduziert den Aufwand für die Installation von Strom. Er verfügt über 10/100/1000 Mbit/s-Ethernet-Ports und bietet damit eine wirtschaftliche Lösung mit hoher Bandbreite für Ihr industrielles Ethernet-Netzwerk.           ETHERNET     LAN 5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover IEEE 802.3 series standards   802.3i, 802.3u, 802.3ab, 802.3x, 802.3az PERFORMANCE SPECIFICATIONS   Bandwidth (Non-blocking) 10 Gbps MAC address table size 2K entries Packer buffer 128 KB   POE OUT     PoE ports Port 1- 4 PoE Max Power per Port (at PSE) 30 W PoE standards 802.3af and 802.3at Alternative B PoE Power Budget (at PSE) 120 W   POWER     Connector 2-pin industrial DC power socket Input voltage range 7 – 57 VDC PoE-out input voltage range 44 – 57 VDC Power consumption   Idle: 2 W / Max (no PoE): 9 W / PoE Max: 129 W PHYSICAL INTERFACES   Ethernet 5 x RJ45 ports, 10/100/1000 Mbps Status LEDs 1 x Power LED, 10 x ETH status LEDs Power 1 x 4-pin power connector Other 1 x Grounding screw   PHYSICAL SPECIFICATION   Casing material Full  aluminium housing Dimensions (W x H x D) 115 x 32 x 95 mm Weight 350 g Mounting options   DIN rail or wall mounting (additional kit needed), flat surface placement PACKAGE CONTAINS     TSW100 62 W EU PSU PR3PWEU3 QSG (Quick Start Guide) Packaging box

Mit der BAT120 können Benutzer ein kompatibles Teltonika Networks Gerät bis zu 6 Stunden in Betrieb halten. Sie hat einen Verpolungs- und Überspannungsschutz für den Eingang und einen 3A Überstromschutz für den Ausgang. Diese robuste und unterbrechungsfreie Stromquelle ist perfekt für Anwendungen, die eine konstante Konnektivität von ihren Teltonika Networks Geräten benötigen, auch wenn Stromausfälle oder -schwankungen auftreten. HIGHLIGHTS • 4-polige industrielle DC-Steckdose • 2300 mAh 17 Wh Batteriekapazität • 3A Überstromschutz • Verpolungsschutz, Überspannungsschutz • 2 x 18650 Li-Ion Zellen • kompatibel mit RUT2xx, RUT95x, RUT3xx, RUTXxx, TRB14x, TRB2xx,           TSW110, TCR100 VERPACKUNGSINHALT • BAT120 • 24W-NETZTEIL • 4-poliges auf 4-poliges Netzkabel • QSG (Schnellstartanleitung) • Verpackungsbox

Datasheet     RUT956 ist ein industrieller Router, der Mobilfunk-, Wi-Fi- und kabelgebundene Konnektivitätsoptionen mit automatischem WAN-Failover und GNSS-Funktionen kombiniert. Serielle Kommunikationsschnittstellen ermöglichen die Integration verschiedenster Geräte in das gesamte Ökosystem, während E/A und fortschrittliche RutOS-Software die Gerätesteuerung, Automatisierung und Ereignisbenachrichtigung erleichtern.       MOBILE     Mobile module 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps SIM switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection Status IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC SMS   SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP USSD Supports sending and reading Unstructured Supplementary Service Data messages Black/White list Operator black/white list (by country or separate operators) Multiple PDN Possibility to use different PDNs for multiple network access and services Band management Band lock, Used band status display APN Auto APN Bridge Direct connection (bridge) between mobile ISP and device on LAN Passthrough   Router assigns its mobile WAN IP address to another device on LAN   NETWORK     Hotspot Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes and option to upload and download customised hotspot themes Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL) VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection Firewall Port forward, traffic rules, custom rules DHCP Static and dynamic IP allocation, DHCP Relay QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e DDNS Supported >25 service providers, others can be configured manually Network backup Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover Load balancing Balance Internet traffic over multiple WAN connections SSHFS Possibility to mount remote file system via SSH protocol   WIRELESS     Wireless mode IEEE 802.11b/g/n, Access Point (AP), Station (STA) WiFi security WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation SSID/ESSID SSID stealth mode and access control based on MAC address Wi-Fi users Up to 100 simultaneous connections Wireless Connectivity Features Fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k) Wireless MAC filter Whitelist, blacklist   ETHERNET     WAN 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX LAN   3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX   MODBUS     Supported modes Server, Client Supported connection types RTU (RS232, RS485), TCP, USB Custom registers   MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality Supported data formats 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII   MQTT GATEWAY     MQTT Gateway   Allows sending commands and receiving data from MODBUS Server through MQTT broker DNP3     Supported modes   TCP Master, DNP3 Outstation, RTU Master SYSTEM CHARACTERISTICS   CPU Mediatek, 580 MHz, MIPS 24KEc RAM 128 MB, DDR2 FLASH storage   16 MB, SPI Flash INPUT / OUTPUT     Input 1 x digital dry input (0 - 3 V), 1 x digital galvanically isolated input (0 - 30 V), 1 x analog input (0 - 24 V), 1 x Digital non-isolated input (on 4-pin power connector, 0 - 5 V detected as logic low, 8 - 30 V detected as logic high) Output 1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30 V, 300 mA, on 4-pin power connector) Events Email, RMS, SMS I/O juggler   Allows to set certain I/O conditions to initiate event   POWER     Connector 4-pin industrial DC power socket Input voltage range 9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max PoE (passive) Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC Power consumption   < 2 W idle, < 7 W Max PHYSICAL INTERFACES (PORTS, LEDS, BUTTONS; SIM)   Ethernet 4 x RJ45 ports, 10/100 Mbps I/O’s 2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector (available from HW revision 1600) Status LEDs 1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional) Power 1 x 4-pin power connector Input/output 1 x 10-pin industrial socket for inputs/outputs Antennas 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS USB 1 x USB A port for external devices RS232 1 x DB9 socket RS485 1 x 6-pin industrial socket Reset   Reboot/User default reset/Factory reset button PHYSICAL SPECIFICATION   Casing material Aluminium housing, plastic panels Dimensions (W x H x D) 110 x 50 x 100 mm Weight 287 g Mounting options   DIN rail (can be mounted on two sides), flat surface placement PACKAGE CONTAINS     RUT956 router 9 W EU PSU PR3PUEU3 2x Mobile antennas (magnetic mount, SMA male, 3 m cable) 2x Wi-Fi antennas (magnetic mount, RP-SMA male, 1.5 m cable) GNSS antenna (adhesive , SMA male, 3 m cable) RS485 connector block I/O connector block Ethernet cable (1.5 m) SIM Adapter kit QSG (Quick Start Guide) Packaging box

Datasheet     Der TSW010 Ethernet switch bietet die kostengünstigste Möglichkeit zur Erweiterung der Netzwerkkonnektivität auf mehrere Ethernet-Geräte. Fünf 10/100-Mbit/s-Ethernet-Ports gewährleisten eine stabile und zuverlässige Konnektivität, die für die meisten industriellen Anwendungen ausreicht, bei denen kein hoher Durchsatz erforderlich ist.         ETHERNET     LAN 5 x ETH port, 10/100 Mbps, supports auto MDI/MDIX crossover IEEE 802.3 series standards   802.3i, 802.3u, 802.3x, 802.3az PERFORMANCE SPECIFICATIONS   Bandwidth (Non-blocking) 1 Gbps MAC address table size   2K entries Jumbo frame support 2048 bytes   POWER     Connector 2-pin industrial DC power socket Input voltage range 9 – 30 VDC PoE (passive) Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC Power consumption   Idle: 0.3 W / Max: 0.9 W PHYSICAL INTERFACES   Ethernet 5 x RJ45 ports, 10/100 Mbps Status LEDs 1 x Power LED, 10 x ETH status LEDs Power 1 x 2-pin industrial DC power socket   PHYSICAL SPECIFICATION   Casing material Aluminium housing Dimensions (W x H x D) 113.1 x 27.4 x 80.5 mm Weight 146.5 g Mounting options   DIN rail or wall mounting (additional kit needed), flat surface placement PACKAGE CONTAINS     TSW010 QSG (Quick Start Guide) Packaging box

industrieller 5G-Router 5G-Dual-SIM-Mobilfunkkommunikation kombiniert mit 5 Gigabit-Ethernet-Ports und Dual-Band-Wi-Fi ermöglicht eine zuverlässige Datenübertragung mit extrem niedriger Latenz. Die Leistungsfähigkeit der 5G-Technologie in Kombination mit einer breiten Palette von Schnittstellen und industriellen Hardware-Funktionen gewährleistet die Anpassungsfähigkeit für zukünftige Upgrades und Erweiterungen.     Datasheet   MOBILE     Mobile module 5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2); 4G (LTE) – LTE Cat 20 2.0Gbps DL, 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL SIM switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection Status Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID, Carrier aggregation SMS   SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP USSD Supports sending and reading Unstructured Supplementary Service Data messages Black/White list Operator black/white list Multiple PDN Possibility to use different PDNs for multiple network access and services Band management Band lock, Used band status display SIM idle protection service When working with devices with two SIM slots, the one not currently in use will remain idle until the device switches to it, meaning that no data is used on the card until then APN Auto APN Bridge Direct connection (bridge) between mobile ISP and device on LAN Passthrough   Router assigns its mobile WAN IP address to another device on LAN WIRELESS     Wireless mode 802.11b/g/n/ac Wave 2 (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA) WiFi security WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation SSID/ESSID ESSID stealth mode WiFi users up to 150 simultaneous connections Wireless Connectivity Features Wireless mesh (802.11s), fast roaming (802.11r), Relayd Wireless MAC filter Whitelist, blacklist Wireless QR code generator Once scanned, a user will automatically enter your network without needing to input login information.    NETWORK     Hotspot Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes and option to upload and download customised hotspot themes Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL) VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection Firewall Port forward, traffic rules, custom rules Firewall status page View all your Firewall statistics, rules, and rule counters Ports management View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on Network topology Visual representation of your network, showing which devices are connected to which other devices Hotspot Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes and option to upload and download customised hotspot themes DHCP Static and dynamic IP allocation, DHCP Relay QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e DDNS Supported >25 service providers, others can be configured manually Network backup Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover Load balancing Balance Internet traffic over multiple WAN connections SSHFS Possibility to mount remote file system via SSH protocol   ETHERNET     WAN 1 x WAN port  10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover LAN   4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover   MODBUS TCP SLAVE     ID range Respond to one ID in range [1;255] or any Allow Remote Access Allow access through WAN Custom registers   MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality   MODBUS TCP MASTER     Supported functions 01, 02, 03, 04, 05, 06, 15, 16 Supported data formats   8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)   DATA TO SERVER   Protocol   HTTP(S), MQTT, Azure MQTT, Kinesis Data to server Extract parameters from multiple sources and different protocols, and send them all to a single server   MQTT GATEWAY     MQTT Gateway   Allows sending commands and receiving data from MODBUS Master through MQTT broker DNP3     Supported modes   TCP Master, DNP3 Outstation SYSTEM CHARACTERISTICS   CPU Quad-core ARM Cortex A7, 717 MHz RAM 256 MB (100 MB available for userspace) FLASH storage   256 MB (80 MB available for userspace) INPUT / OUTPUT     Input 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high Output 1 x Digital Output, Open collector output, max output 30 V, 300 mA Events Email, RMS, SMS I/O juggler   Allows to set certain I/O conditions to initiate event POWER     Connector 4-pin industrial DC power socket Input voltage range 9 – 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max PoE (passive) Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC   PHYSICAL INTERFACES   Ethernet 5 x RJ45 ports, 10/100/1000 Mbps I/O’s 1 x Digital Input, 1 x Digital Output on 4-pin power connector Status LEDs 3 x connection status LEDs, 3 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1 x Power LED, 2 x 2.4G and 5G Wi-Fi LEDs SIM 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V Power 1 x 4-pin power connector Antennas 4 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNNS USB 1 x USB A port for external devices Reset   Reboot/User default reset/Factory reset button Other 1 x Grounding screw   PHYSICAL SPECIFICATION   Casing material Aluminum housing Dimensions (W x H x D) 132 x 44.2 x 95.1 mm Weight 533 g Mounting options   DIN rail (can be mounted on two sides), flat surface placement OPERATING ENVIRONMENT   Operating temperature -40 °C to 75 °C Operating humidity 10% to 90% non-condensing Ingress Protection Rating IP30   PACKAGE CONTAINS     RUTX50 Router 18 W EU PSU 4x Mobile antennas (swivel, SMA male) 2x Wi-Fi antennas (magnetic mount, RP-SMA male, 1.5 m cable) 1x GNSS antenna (adhesive, SMA male, 3 m cable) Ethernet cable (1.5 m) SIM Adapter kit QSG (Quick Start Guide) Packaging box
